Product Introduction

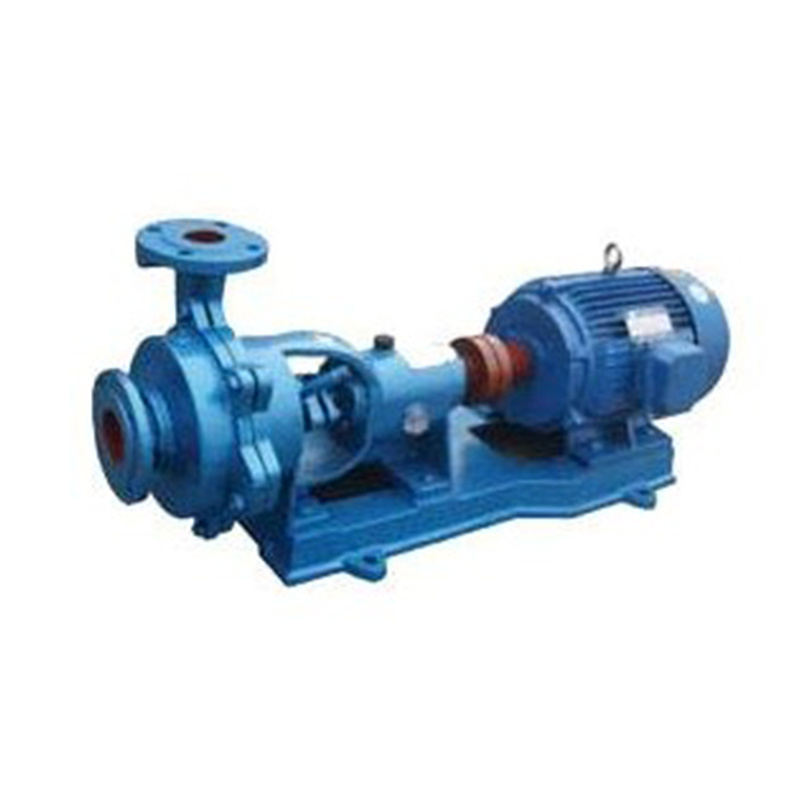

This type of pump is a cantilever centrifugal slurry pump, suitable for conveying abrasive or corrosive slurry, and is widely used in metallurgy, mining, petroleum, chemical, coal, power, transportation, river dredging, building materials, and municipal engineering departments.

Performance range

Flow rate	2—2772m³/h
Lift	4—97m
Motor power	15—1200KW
Product standard	GB/T9001—1994

The AH series slurry pump is an industrial pump designed specifically for processing high concentration and highly abrasive slurry, widely used in industries such as metallurgy, mining, coal, power, and building materials.

Structural features:
Cantilever and horizontal centrifugal design, adopting a dual pump casing structure, the pump body and cover are equipped with replaceable metal or rubber liners, and the impeller and other flow components are also made of wear-resistant materials to extend their service life.
The bearing component is a cylindrical structure, which facilitates adjusting the gap between the impeller and the front guard plate. It can be disassembled as a whole during maintenance,
There are various forms of shaft seals, including packing seals, secondary impeller seals, and mechanical seals, to meet the needs of different working conditions.
The transmission methods include:
V-belt transmission, elastic coupling transmission, gear reducer transmission, etc., meet different power needs.
Performance characteristics:
Wide flow range (10.8-5400m ³/h), wide head range (3-118m), motor power of 15-1200KW, able to adapt to various working conditions.
Good cavitation performance, high efficiency, and can meet long-distance transportation needs through multi-stage series technology.
There are various metals to choose from for the overcurrent components, which increase the depth and adopt multiple speeds and deformation modes to ensure that the pump operates under optimal conditions.
Scope of application:
Mainly used for conveying strong abrasive and high concentration slurry, suitable for industries such as metallurgy, mining, coal, power, and building materials.
It can handle slag slurry of different concentrations and corrosiveness, and the specific flow range is adjusted according to the characteristics of the slag slurry.

Factory scene

FAQ

Can you accept small quantities?

Yes, accept small quantity, fast delivery

Do you have pre-shipment inspection procedures?

Yes, we always test the products before delivery.

Can I take samples for testing?

Yes, samples can be sent for testing before bulk ordering.

When is the delivery time?

Inventory orders within 7-15 days, for oem and odm orders, the specific time depends on the actual situation.

< 1 2 >

AH Series slurry pump

V-belt transmission, elastic coupling transmission, gear reducer transmission, etc., meet different power needs.

info@gaoxinpumps.com

8613833296368

Classification

Slurry pump

Keywords

ZB series slurry pump

Product inquiry Related Products

Get A Quote

Note: Please leave your contact information and our professionals will contact you as soon as possible!

Submit

Related Products

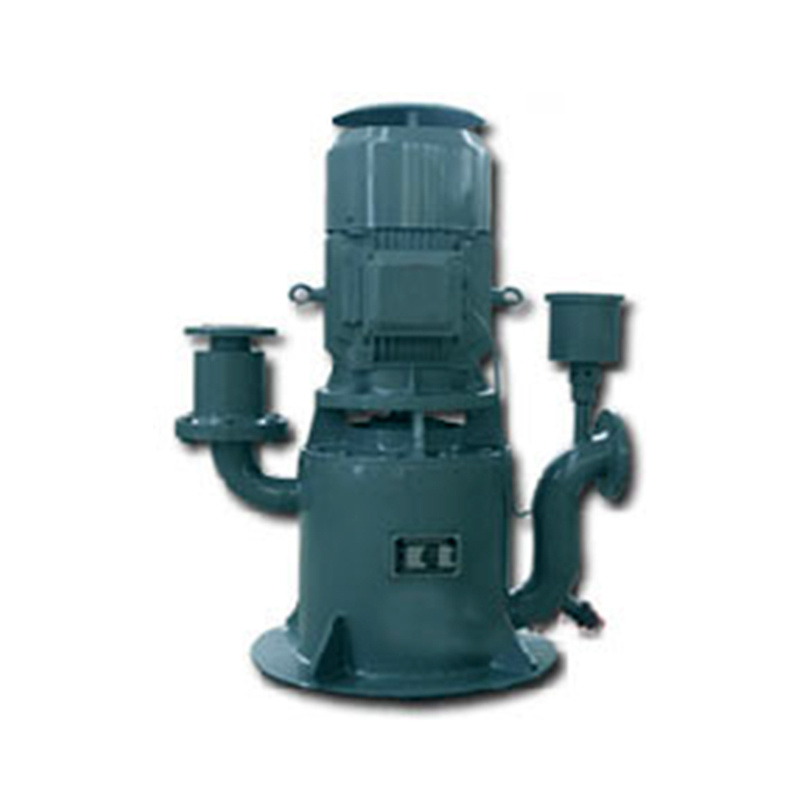

WFB Series Sealless Self-control Self-priming Pump

The WFB series unsealed self-priming pump is the first product to fill the domestic gap.

N series condensate pump

Mainly composed of pump body, impeller, shaft, suspension, and pump cover.

LXL Series Two Phase Flow Pumps

The materials of overcurrent components include cast iron, cast steel, stainless steel, etc., suitable for different occasions.

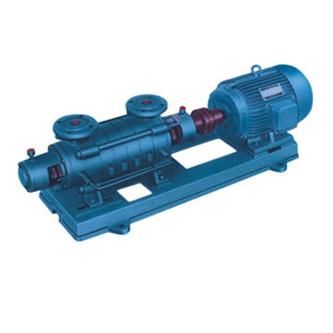

GC series boiler feed water pump

The GC type boiler feed pump can be used to transport clean water and liquids with physical and chemical properties similar to water.

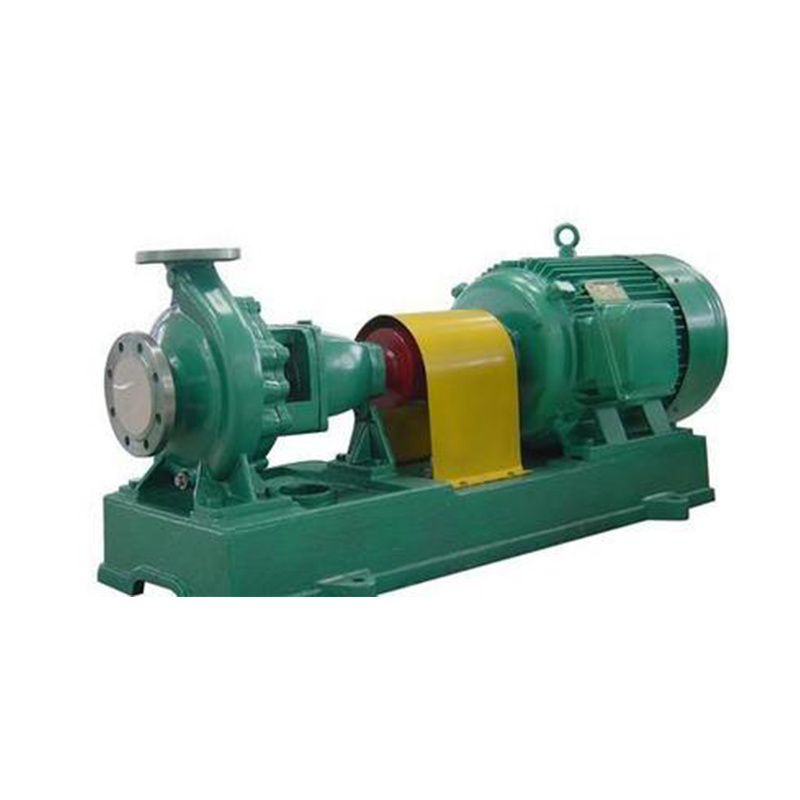

IH series chemical centrifugal pump
